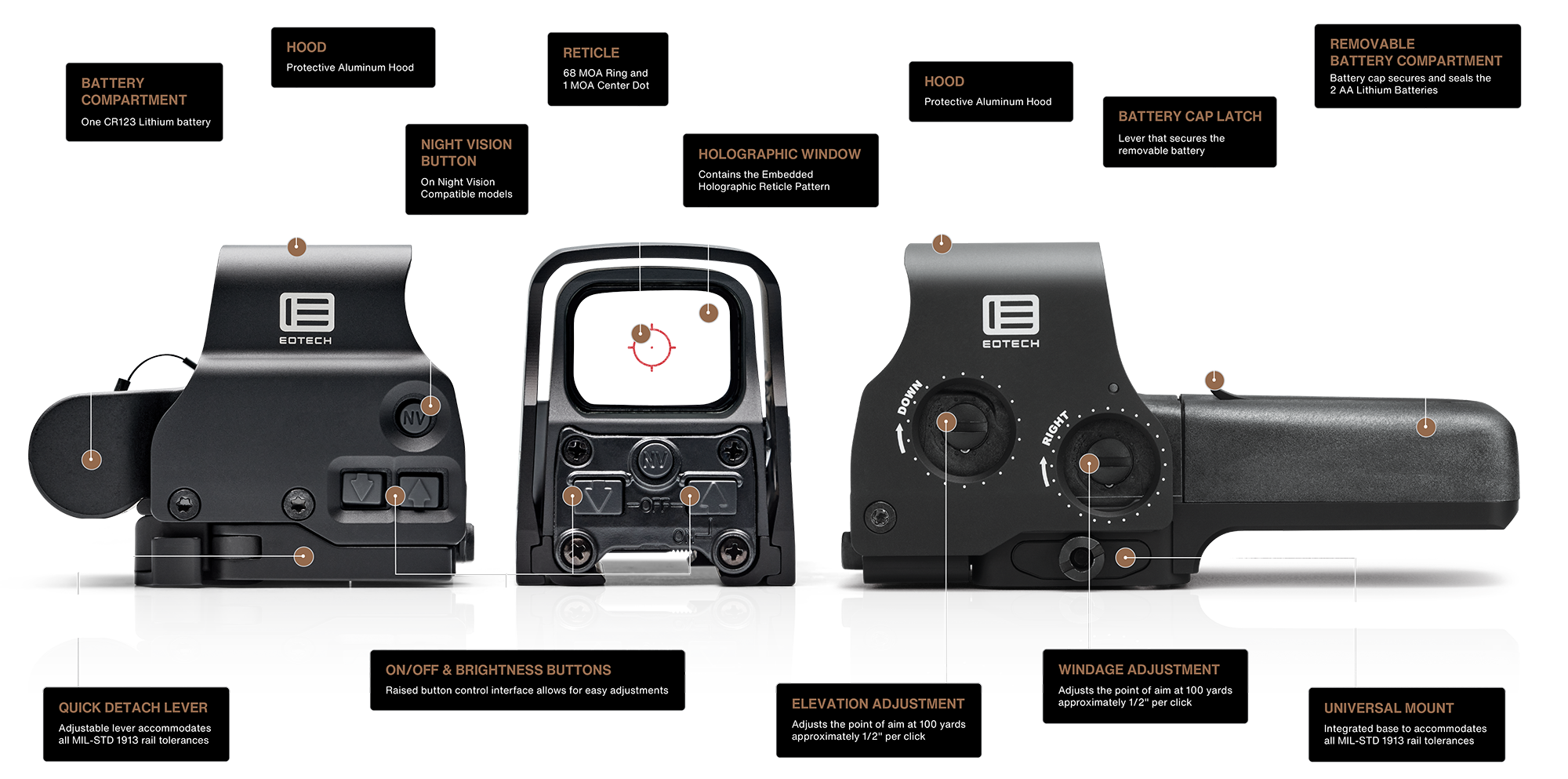

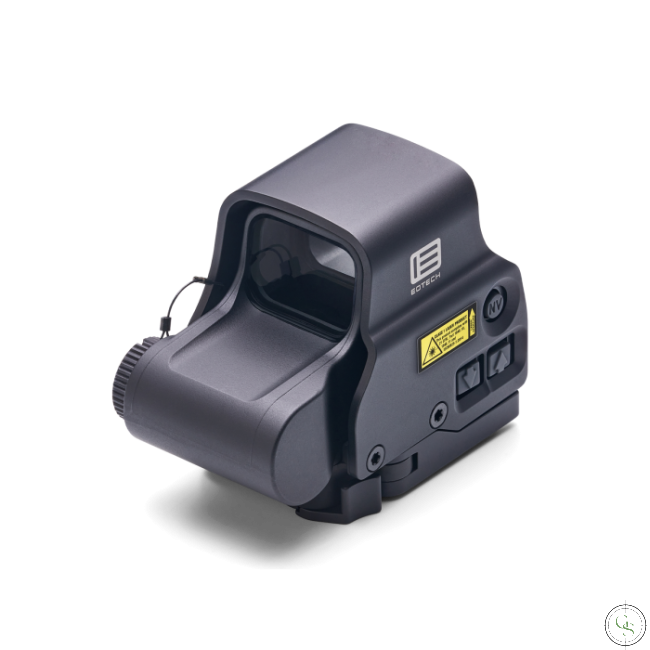

The HWS EXPS3™ is an excellent choice for professionals. The EXPS3 offers true two eyes open shooting for fast target acquisition, night vision compatible settings, and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.
| Night Vision Compatible |
| L X W X H 3.8" x 2.3" x 2.9" (96.5 x 58.4 x 73.7 mm) |
| Weight 11.2oz (317.5g) |
| Water Resistant 33ft. (10 m) depth |
| Mount 1" Weaver or MIL-STD-1913 rail |
| Windage & Elevation Adjustment 0.5 MOA per click |
| Brightness 20 daylight settings 10 additional settings for Gen I through III+ night vision devices |
| Power Source 1 x CR123 battery |
| Battery Life 1,000 continuous hours at nominal setting 12 at room temperature |
| Operating Temperature -40°F to 140°F (-40°C to 60°C) |
| Country of Origin Made in USA |


EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

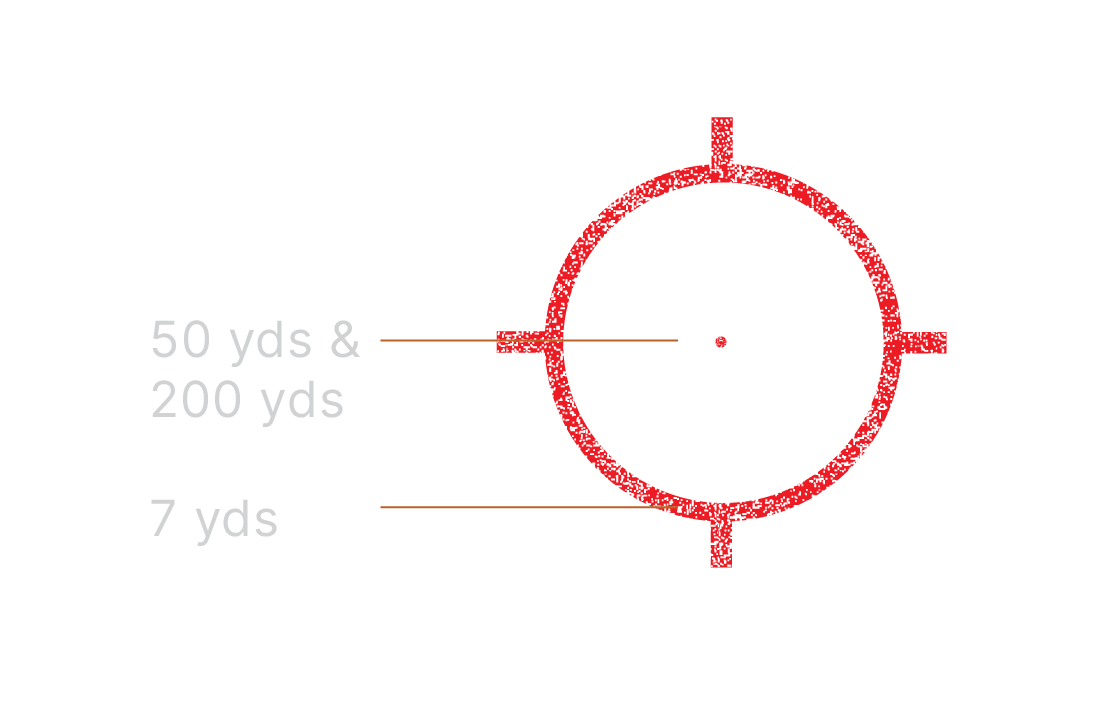

Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
OR

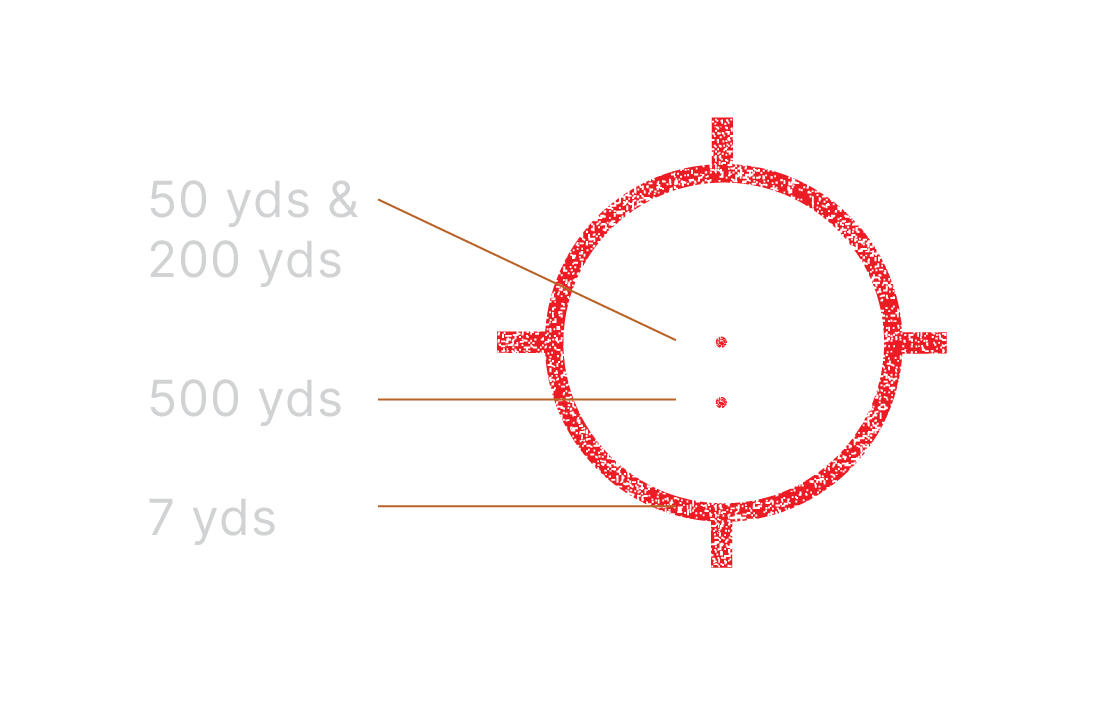

Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.


The standard ring found in most reticles equates to approximately 68" (1.72 m) at 91.4 metres.

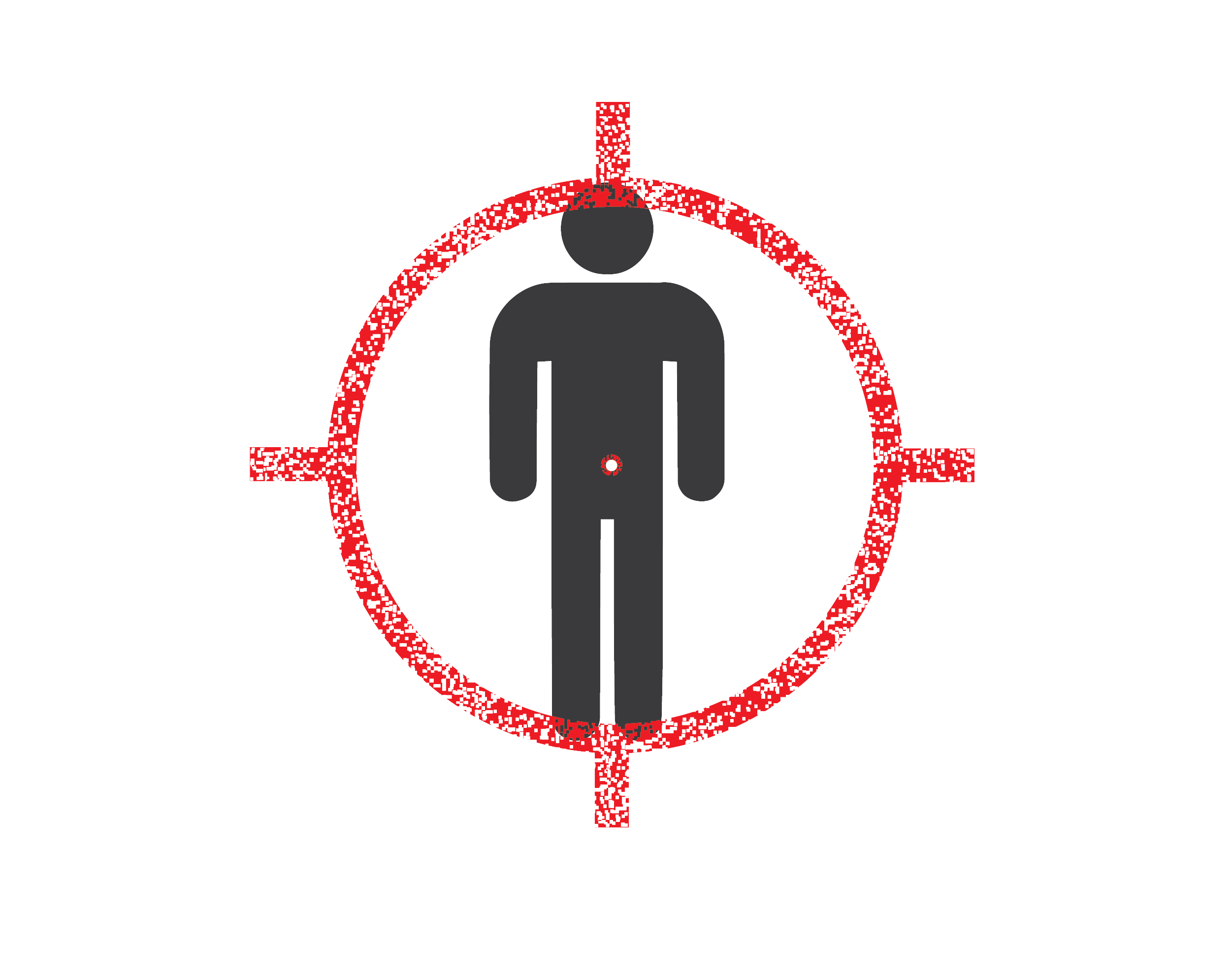

91.4 m (100 yds.)

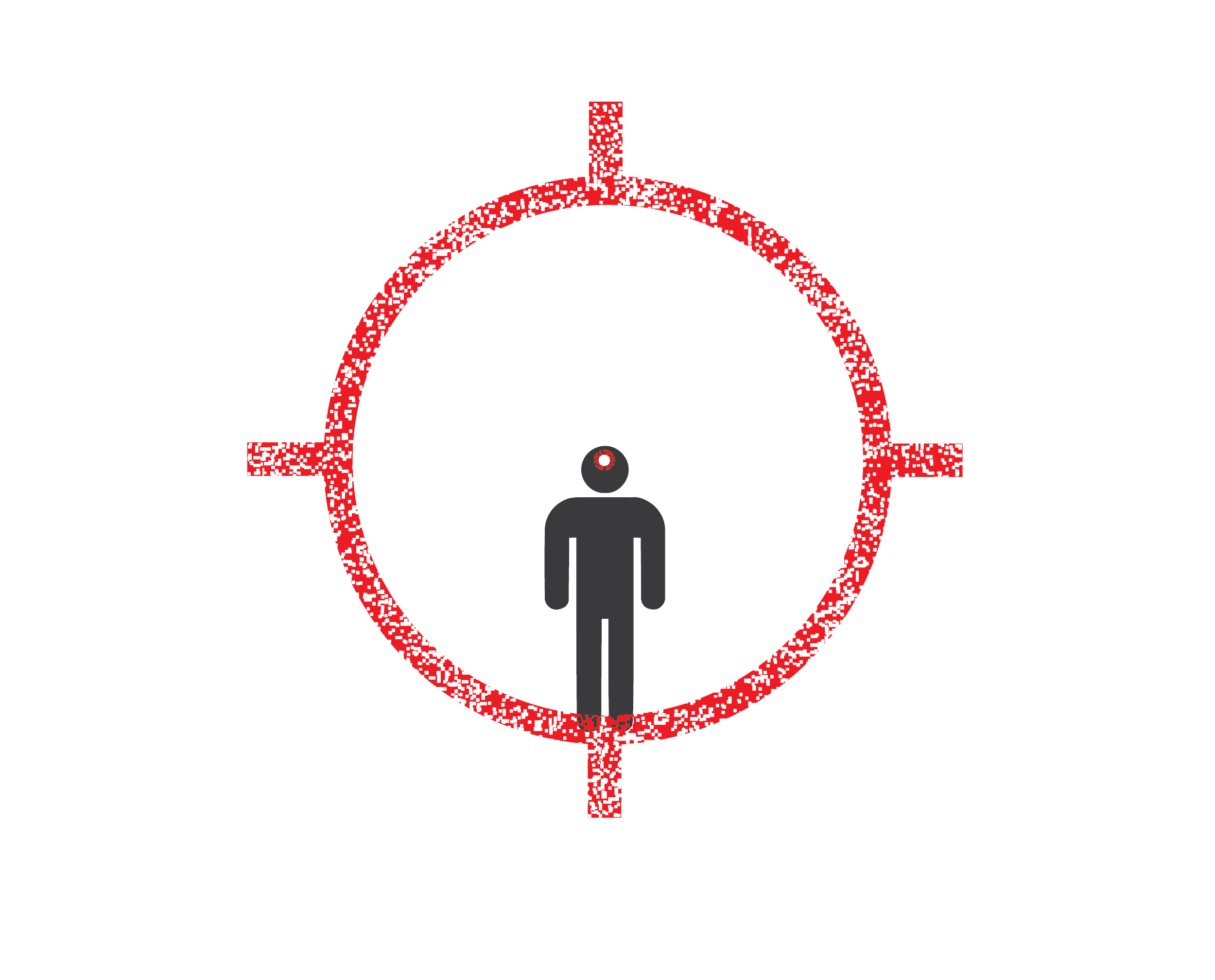

182.8 m (200 yds.)

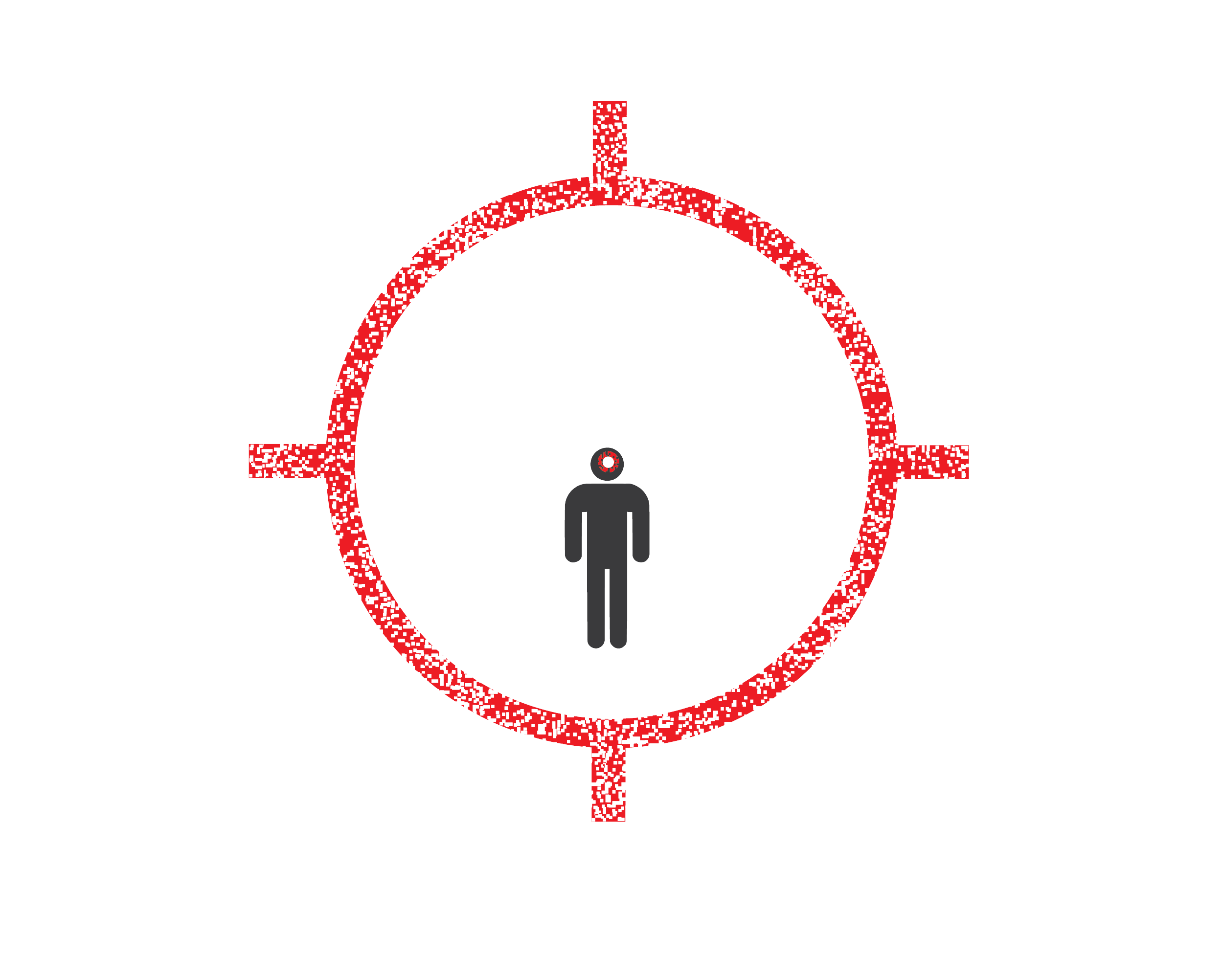

274.3 m (300 yds.)

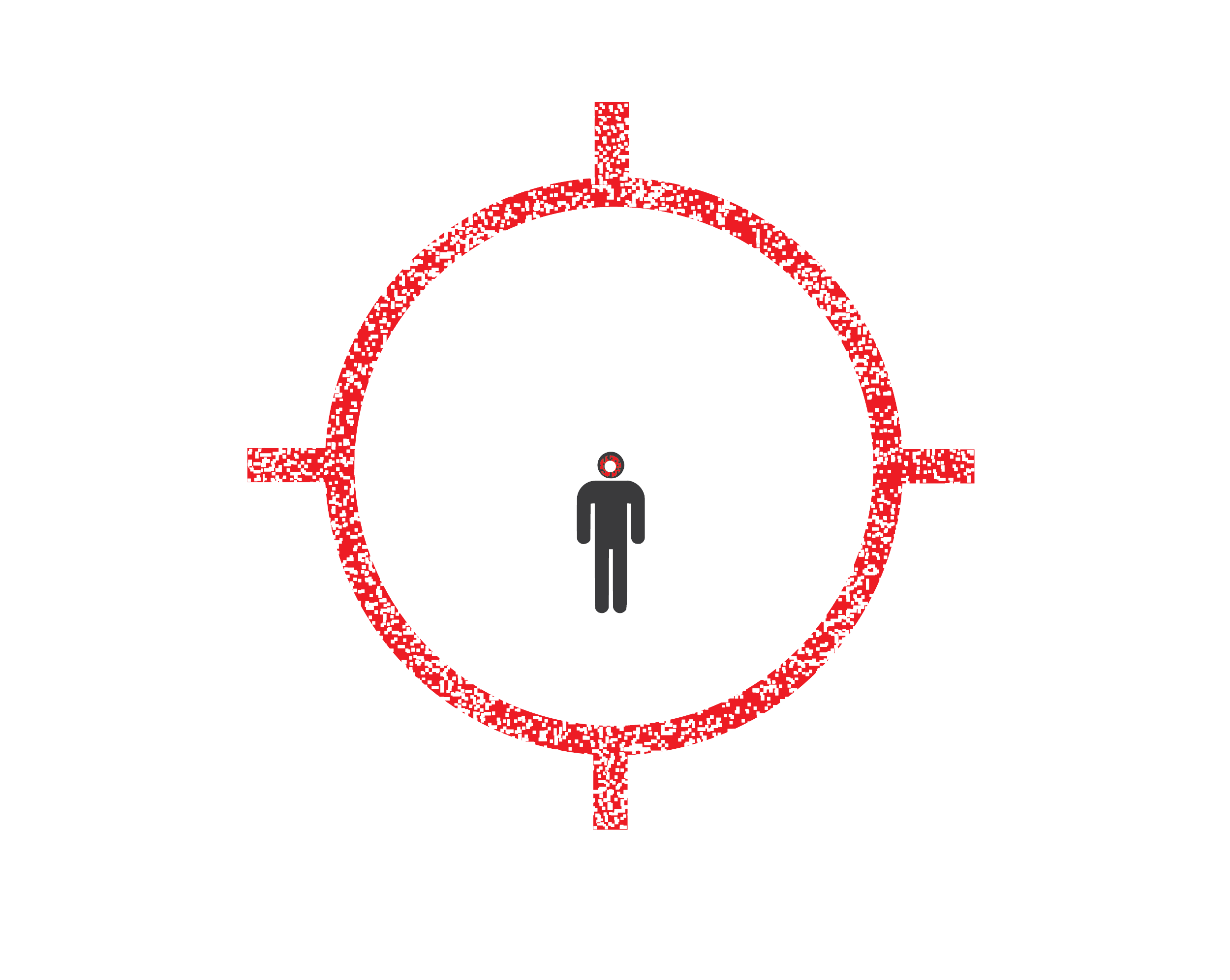

365.7 m (400 yds.)

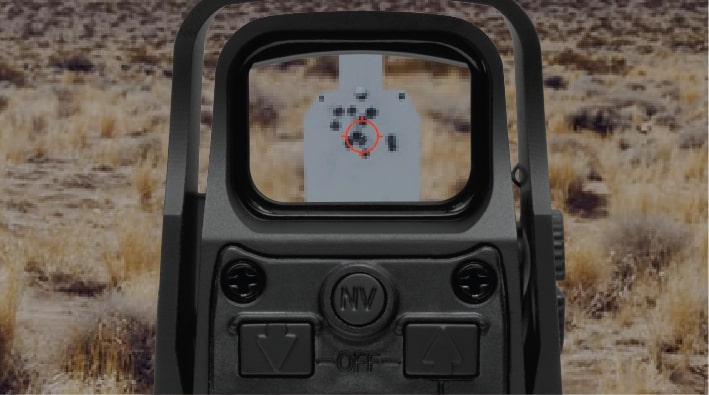

The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.

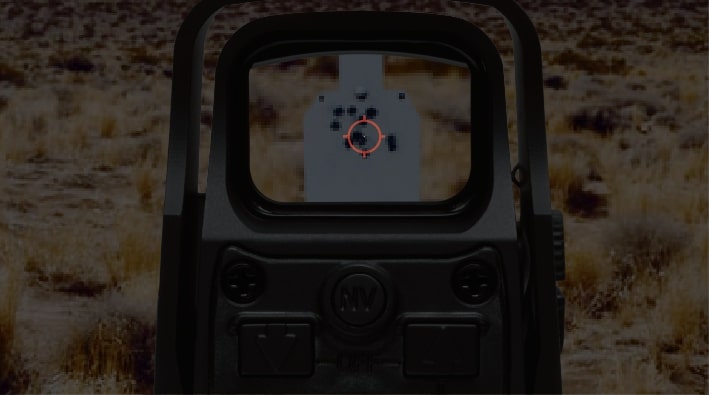

Dark




Bright


| Exportable products | No |
|---|
