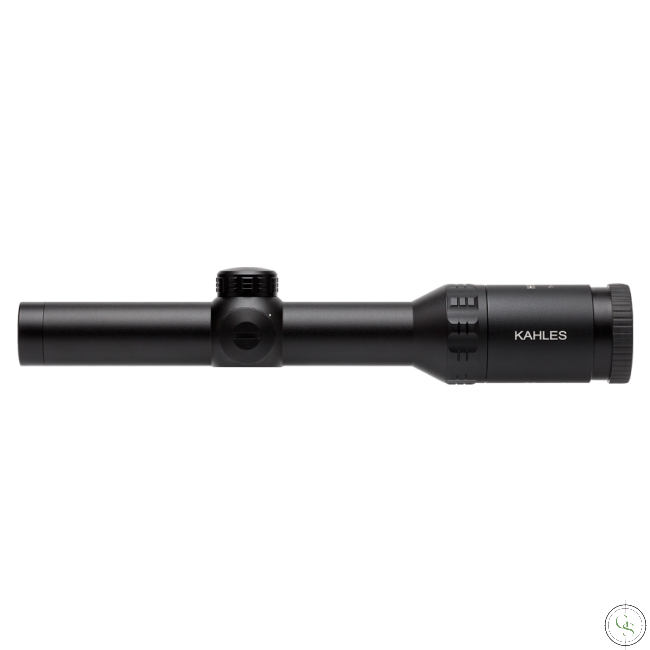

The HELIA series impresses with uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.
| Magnification: | 1-5x |
| Objective lens diameter: | 24 mm |
| Eye relief: | 95 mm |
| Field of view: | 42.4 - 8.1 m/100 m |
| Diopter compensation: | +2 / -3.5 dpt |
| Twilight factor (DIN 58388): | 3.0 - 11.0 |
| Adjustment range (E/W): | 2.5 / 2.5 m |
| Tube diameter: | 30 mm |

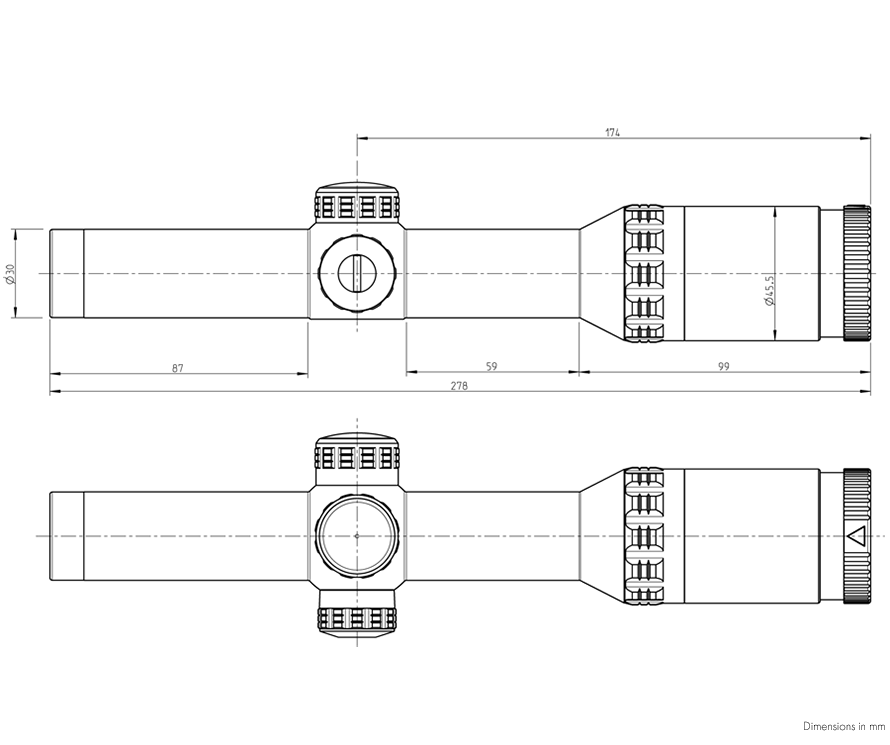

| Length: | 278 mm |
| Weight: | 475 g |
| Weight (SR-Rail): | 499 g |
| Focal plane: | 2 |
| Illuminated: | Yes |
| Warranty: | 10 years (2 electronics) |

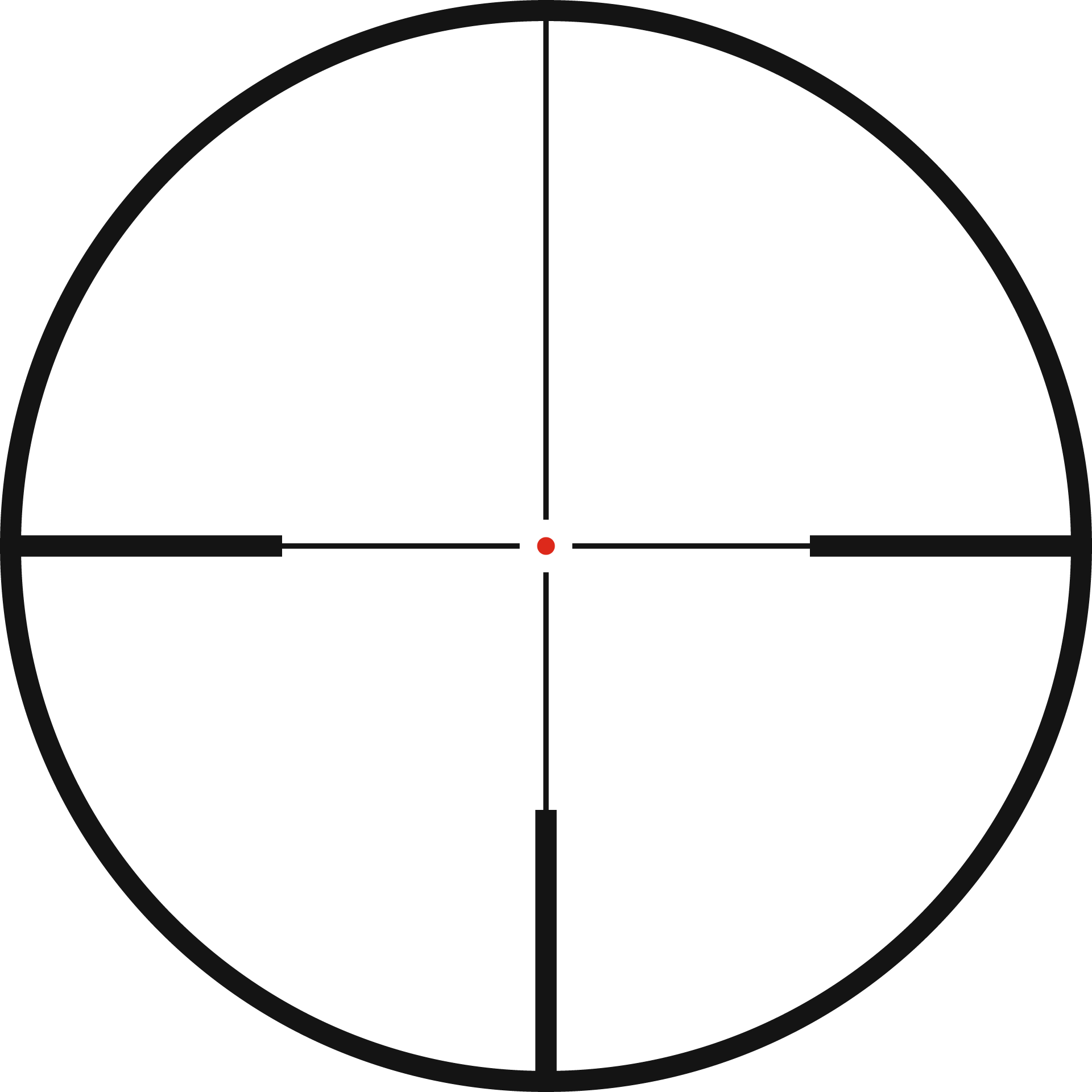

4-DH


When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification.


The main tube has a diameter of 30 mm which is the standard for hunting scopes.


The automaticlight function (tilt sensor) detects whether or not the rifle scope is in a shooting position and transmits this information immediately to the illumination unit. This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.


The SR rail (Swarovski rail) provides since several years the most innovative riflescope mounting option. The mounting rail grips the upper part of the mount with it’s teeth and guarantees complete shooting stability. Through this technique, the scope can also quickly and easily be mounted to different rifles and has established itself as a standard mounting rail in the market.


| Exportable products | No |
|---|
