Swarovski - Z6i 1-6x24

Swarovski - Z6i 1-6x24

Swarovski - Z6i 1.7-10x42 BT

Swarovski - Z6i 1.7-10x42 BT

Swarovski - Z6i 1.7-10x42

R 60,000.00
Availability:
In stock
SKU
Z6I1710424AI
Get your goods upfront and pay for
them over 3 interest free instalments
of R 20,000.00. Standard shipping terms
apply.
Find out how >>

Description:

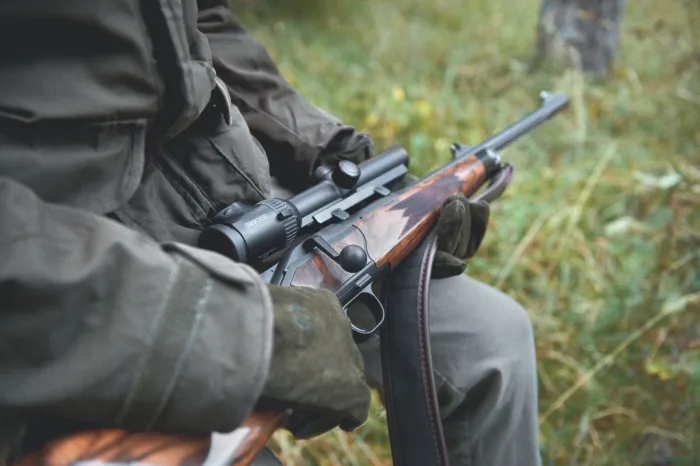

The illuminated Z6i 1.7-10x42 L is ideal for hunting. Its slim design makes it the perfect fit for traditional firearms, as well as for still hunting or mountain hunting.


Technical Specifications:

Mount-Type:

  • ring-mount

Reticle:

4A-I


Measurement:

0.36 / 10
Impact point correction per click (in / mm)
1.5 / 54
Max. elevation / windage adjustment range (m/100m / in/100yds)

Objective:

1.7-10x
Magnification
16.0-42 mm
Effective objective lens diameter
9.6-4.2 mm
Exit pupil diameter
95 mm
Exit pupil distance
25.5-4.2 m/100m
Field of view
14.3-2.4 °
Field of view degrees
23.7 °
Field of view apparent
-3 to +2 dpt
Diopter adjustment
90 %
Light transmission
4.7-20.5
Twilight factor acc. to ISO 14132-1

Environment & Conditions:

-20 to +55 °C
Functional temperature
-30 to +70 °C
Storage temperature
13 ft / 4 m water depth (inert gas filling)
Submersion tightness


Illumination:

Twilight: 0 - 32 / Day: 33 - 64
Brightness levels


Size & Weight:

324 mm
Length in mm.
500 g
Weight
30 mm
Central tube diameter


Digital:

M 44x0.75
Objective filter thread

Twilight factor at medium brightness: 1,400;

Daylight factor at medium brightness: 180;
Operating time


WHAT TO CONSIDER WHEN CHOOSING SWAROVSKI:

MAGNIFICATION

The magnification specifies how much closer an object appears to be. The higher the magnification, the closer the object appears and the smaller the field of view. Rifle scopes usually have variable magnification (zoom), e.g. 2-16x. This means it is possible to zoom continuously from 2x to 16x magnification.

IMPACT POINT ADJUSTMENT

To always be able to aim at the sighting point from different distances, the reticle is adjusted so that the impact point matches the aiming point. The aiming point is the point on the object you want to target. The reticle adjustment in the turrets on the rifle scope is operated using the click settings. Each click changes the impact point.

ADJUSTMENT RANGE

The adjustment range describes the range within which you can correct the impact point by adjusting the reticle without moving the device. The adjustment range is specified in relation to both the elevation and the windage adjustment.

We measure the adjustment range in meters per 100 meters (m/100m) or inches per 100 yards (in/100yd). Other manufacturers choose to specify this in MRAD (milliradians) or MOA (minutes of angle).

LIGHT TRANSMISSION

This describes the amount of visible light that can pass through an optical system and is expressed as a percentage. The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. A device with a suffix of 2-16x50, for example, has an objective lens with a diameter of 50 mm.
