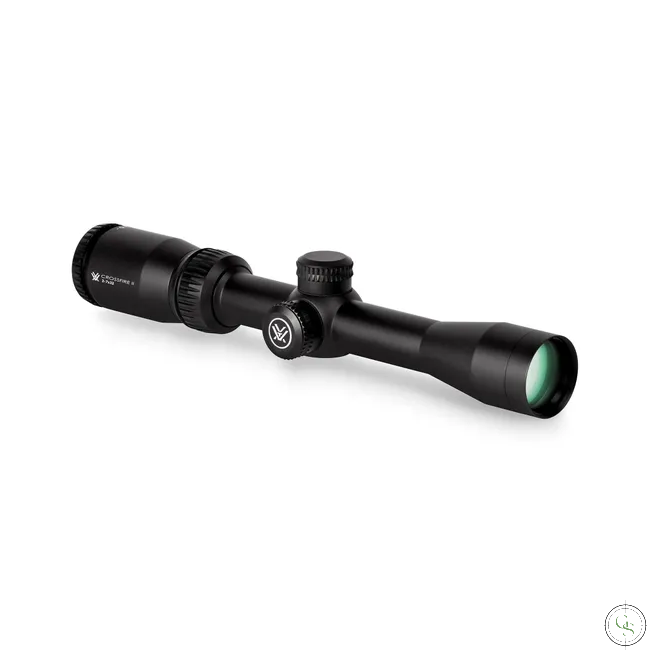

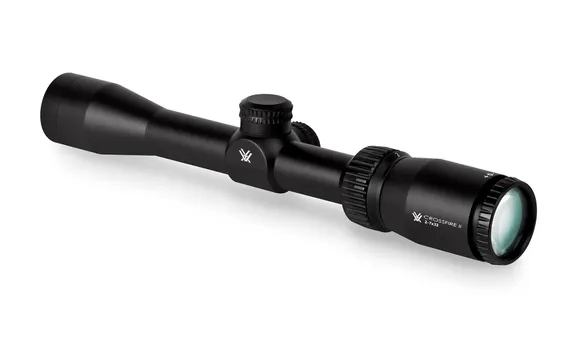

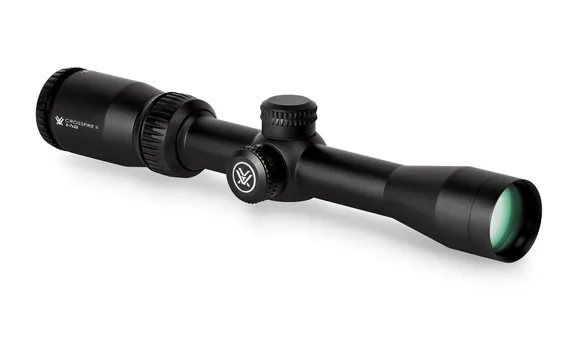

Clearer. Tougher. Brighter. Our popular Crossfire riflescopes are completely redesigned and built to exceed the performance standards of similarly-priced riflescopes. Longer eye relief, a fast-focus eyepiece, fully multi-coated lenses and improved, resettable MOA turrets ensure optimal performance in the field. The hard anodized one-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for a lifetime of waterproof/fogproof performance. The Crossfires deliver - and then some.


| Magnification: | 2-7x |
| Objective Lens Diameter: | 32 mm |
| Focal Plane: | Second Focal Plane |
| Reticle: | V-Plex (MOA) |
| Turret Style: | Capped |
| Tube Size: | 25.4 mm |
| Adjustment Graduation: | 1/4 MOA |
| Parallax Setting: | 45.72m |
| Max Windage Adjustment: | 60 MOA |
| Max Elevation Adjustment: | 60 MOA |
| Travel Per Rotation: | 15 MOA |
| Field of View: | 12.80m-3.84m @ 91.44m |
| Eye Relief: | 99.06mm (3.9") |
| Length: | 292.1mm (11.5") |
| Weight: | 0.39kg (13.9 oz) |

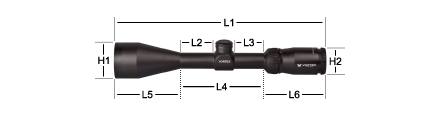

| Lengths | Heights | |||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 | |
| 292.61mm | 47.24mm | 39.12mm | 117.60mm | 78.74mm | 73.66mm | 38.86mm | 40.89mm | |
| Aluminum Grade: | Aircraft | |
| ArmorTek®: | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. | |
| Multi-Coated: | Fully Multi-Coated | |
| Shockproof: | Rugged construction withstands recoil and impact. | |
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
Subtension detail for Crossfire II 2-7x32 Rimfire riflescope with V-Plex MOA reticle.




The Crossfire II – Clearer, tougher, better eye relief.
The basic difference between first and second focal plane riflescopes.
