The gap between tactical mid- and long-range shooting is gone. Top off your carbine or DMR rifle with a first focal plane optic that’s versatile, tough, ultra-clear at any magnification, and specifically designed for rapid adjustment in fast-changing target scenarios.


| Magnification: | 3-18x |
| Objective Lens Diameter: | 44 mm |
| Focal Plane: | First Focal Plane |
| Reticle: | EBR-7C (MOA) OR EBR-7C (MRAD) |
| Turret Style: | Exposed Elevation Capped Windage |
| Tube Size: | 34 mm |
| Adjustment Graduation: | 1/4 MOA OR .1 MRAD |
| Parallax Setting: | 9.14m to infinity |
| Max Windage Adjustment: | 62 MOA OR 18 MRAD |
| Max Elevation Adjustment: | 154 MOA OR 45 MRAD |
| Travel Per Rotation: | 25 MOA OR 10 MRAD |
| Field of View: | 11.98m-2.04m |
| Eye Relief: | 96.52mm (3.8") |
| Length: | 337.82mm (13.3") |
| Weight: | 0.77kg (27.3 oz) |


| Lengths | Heights | |||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 | |
| 337.82mm | 48.26mm | 68.58mm | 162.56mm | 86.36mm | 88.9mm | 50.8mm | 45.72mm | |
| Optical Features | ||
| First Focal Plane Reticle: | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. | |
| XD Optical System: | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in | |
| Illuminated Reticle: | Provides precise aiming under low-light conditions. | |
| RevStop™ Zero System: | Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments. | |
| Glass-Etched Reticle: | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. | |
| Fully Multi-Coated Lenses: | Anti-reflective coatings on all air-toglass surfaces provide increased light transmission for greather clarity and low-light performance. | |
| Construction Features | ||
| ArmorTek®: | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. | |
| Single-Piece Tube: | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. | |
| Aircraft-Grade Aluminum: | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. | |
| Low Glare Matte Black Annodize: | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. | |
| Nitrogen Gas Purged: | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. | |
| Waterproof: | Designed to withstand harsh weather conditions | |
| Fogproof: | Nitrogen gas purging prevents internal fogging over a wide range of temperatures | |
| Shockproof: | Designed to withstand the highest levels of recoil and impact. | |
| Convenience Features | ||
| Fast Focus Eyepiece: | Allows quick and easy reticle focusing. | |
| Throw Lever: | The included throw lever can be installed for quick and easy magnification adjustments. | |


Designed to maximize long-distance shooting and ranging abilities, the EBR-7C reticle can be used to effectively determine ranges, holdovers,windage corrections, and moving target leads.Ultra-precision laser etching on the glass reticle ensures that specifications are kept to the tightest tolerances possible. The fine center crosshair subtensions on the EBR-7C reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility. Includes windage reference dots on drop lines

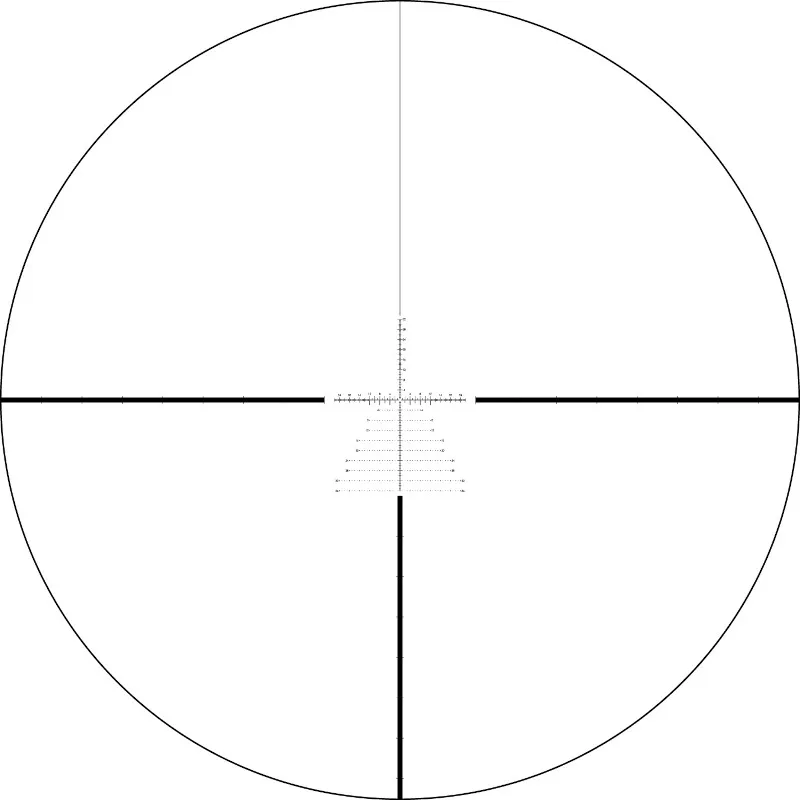

Subtension detail for Strike Eagle 3-18X44 riflescope with EBR-7C MOA reticle.
OR
Designed to maximize long-distance shooting and ranging abilities, the EBR-7C reticle can be used to effectively determine ranges, holdovers,windage corrections, and moving target leads.Ultra-precision laser etching on the glass reticle ensures that specifications are kept to the tightest tolerances possible. The fine center crosshair subtensions on the EBR-7C reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility. Includes windage reference dots on drop lines

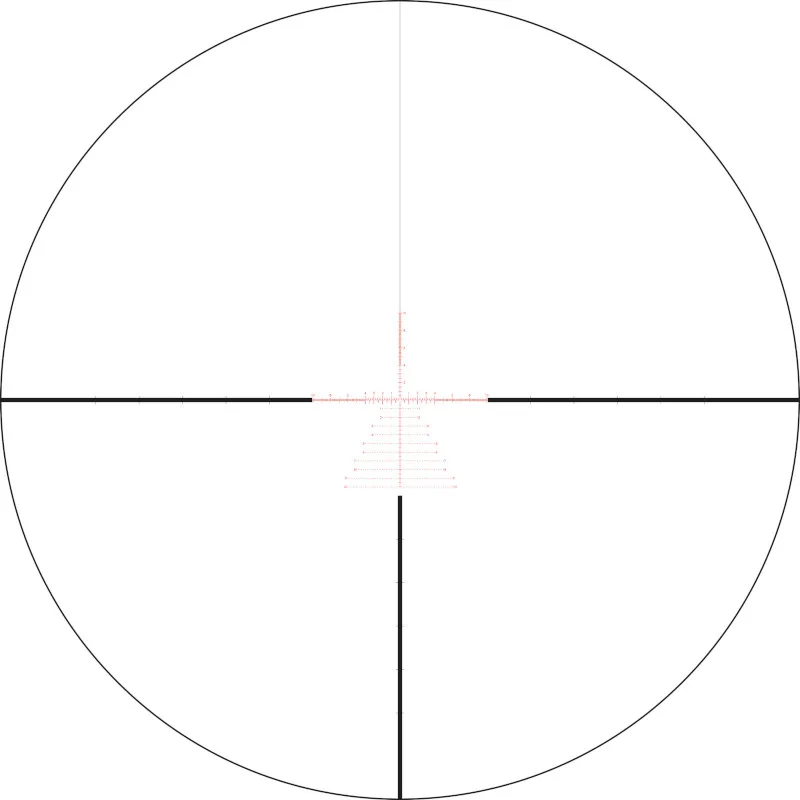

Subtension detail for Strike Eagle 3-18X44 riflescope with EBR-7C MRAD reticle.




| Exportable products | No |
|---|
