VORTEX - RETICLE EYEPIECE RAZOR® HD

VORTEX - RETICLE EYEPIECE RAZOR® HD

VORTEX - VIPER® HD RETICLE EYEPIECE

As low as R 6,699.00
Available with Ranging (MOA) OR (MRAD) Reticles
Availability:
In stock
Only %1 left
SKU
VS-85
Get your goods upfront and pay for
them over 3 interest free instalments
of R 2,233.00. Standard shipping terms
apply.
Find out how >>

Description:

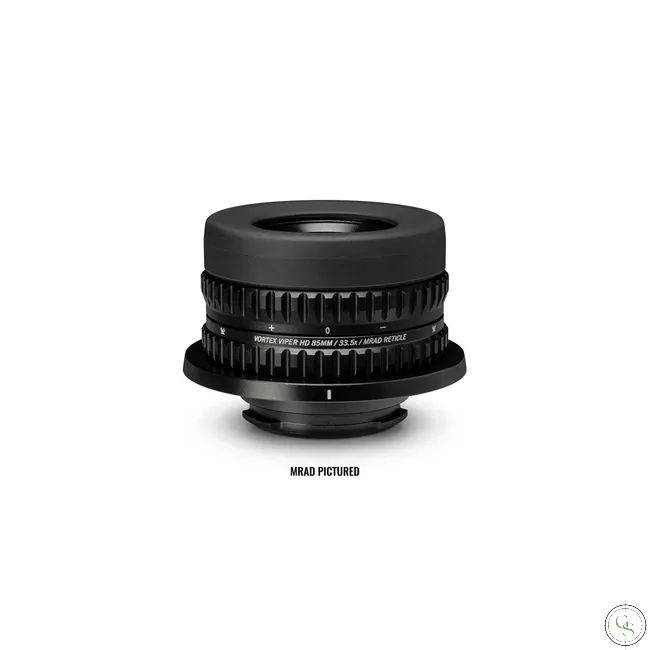

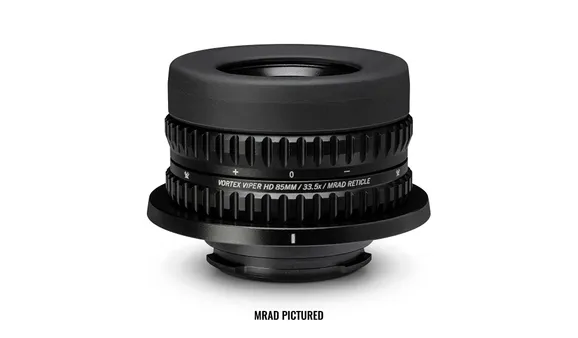

Want to be a better shot caller? Put a Viper Reticle Eyepiece on your Viper HD 85mm spotting scope and it becomes the perfect optical measuring stick for making spotter-to-shooter communication fast and easy. A fixed magnification of 33.5x gives you all the power you need, and a diopter ring and the ability to rotate the reticle to level it with the horizon line lets you customize your view.


Specifications:

Reticle: (MOA) OR (MRAD)
Eye Relief: 18 mm
Length: 43.94mm (1.73")
Weight: 0.16kg (5.6 oz)

This eyepiece is specifically designed for use with the latest generation Viper HD 20-60x85mm spotting scopes - it is not compatible with the 65mm Viper HD models

Compatible Models : V502, V503

INCLUDED IN THE BOX:

  • Lens cover
  • Microfiber cleaning/carry pouch

Reticle:

Ranging (MOA)

Hashmarked ranging reticle using MOA-based subtension lines for ranging, holdover, and windage corrections. Secondary ranging references facilitate rapid range estimating.

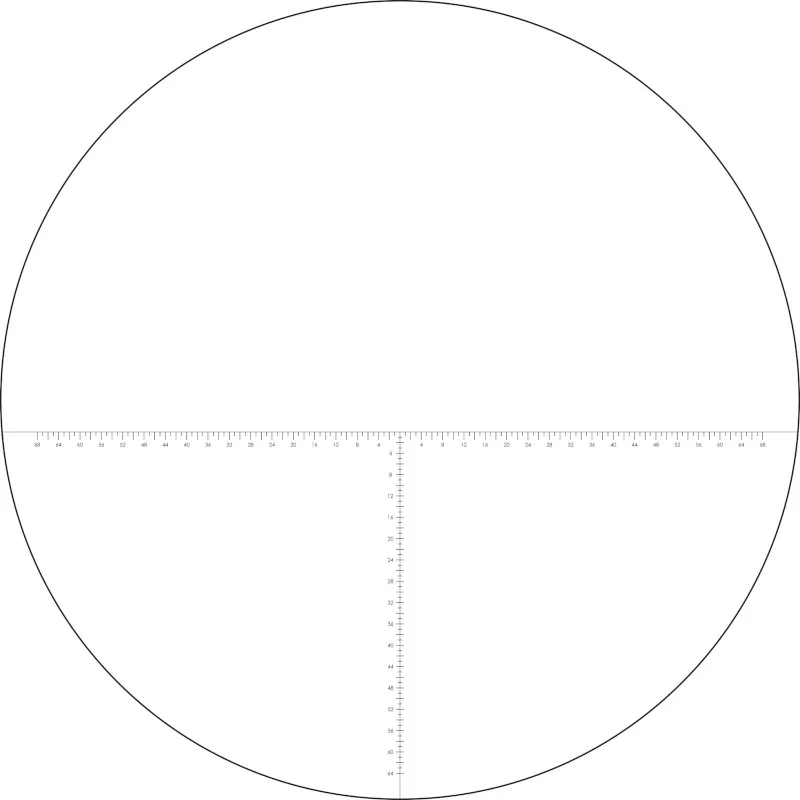

Subtension detail for the Ranging MOA reticle.

OR

Ranging (MRAD)

Hashmarked ranging reticle using MRAD-based subtension lines for ranging, holdover, and windage corrections. Secondary ranging references facilitate rapid range estimating.

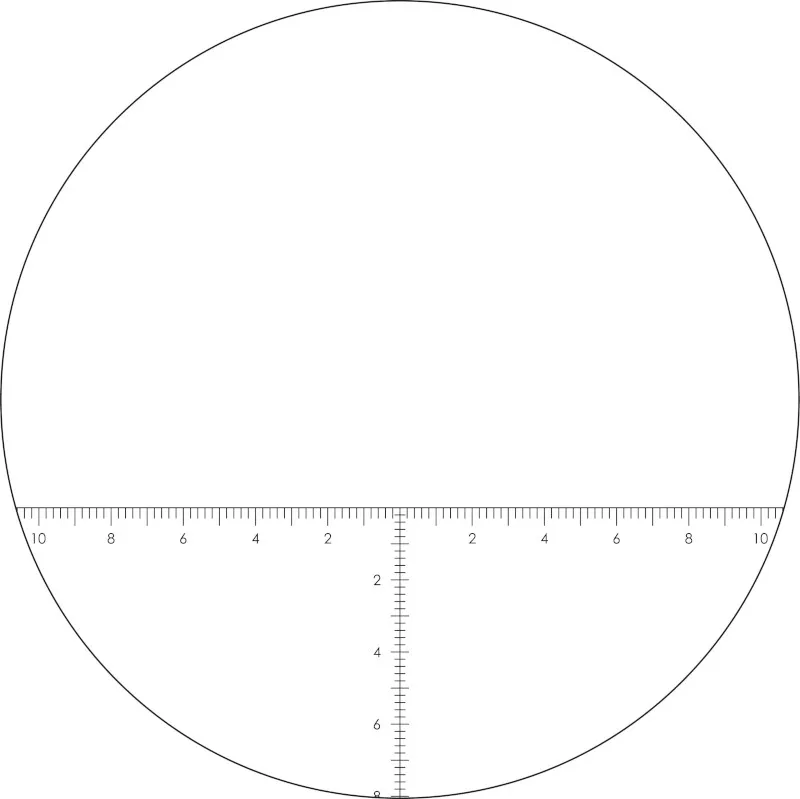

Subtension detail for the Ranging MRAD reticle.
