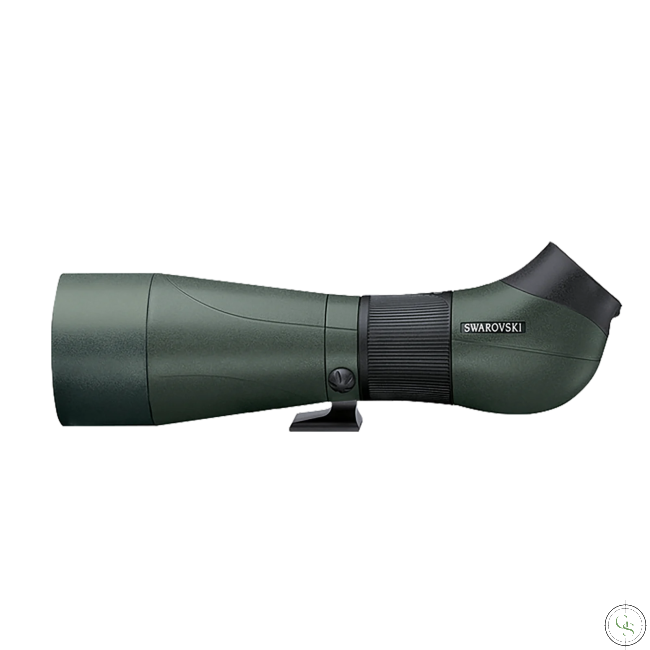

The ATS 65 is a lightweight and handy spotting scope that offers high optical quality, despite its compact dimensions. With its angled view the ATS 80 enables comfortable observation for hours. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.
The ATS 65 is a lightweight and handy spotting scope that offers high optical quality, despite its compact dimensions. Perfectly suited to long days outdoors, when every ounce/gram counts, its angled view facilitates comfortable and effortless observation.
OR
With its angled view the ATS 80 enables comfortable observation for hours. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.
| -20 to +55 °C Functional temperature |
-30 to +70 °C Storage temperature |
| 13 ft / 4 m water depth (inert gas filling) Submersion tightness |
|
370 mm OR 400 mm |
1370 g OR 1405 g |
|
65 mm OR 80 mm |
17 mm Eye relief |
|
3 m OR 5 m |
> 5 dpt Diopter correction at ∞ |
|
M 67 x 0.75 OR M 82 x 0.75 |
25-50x OR 20-60x |
|
2.6-1.3 mm 3.3-1.1 mm OR 3.2-1.6 mm 4.0-1.3 mm |
42-27 m/1000m OR 36-20 m/1000m |
|
2.4-1.55 ° OR 2.1-1.1 ° |
2.4-1.55 ° OR 2.1-1.1 ° |
|
60-70 ° OR 40-65 ° |
85 % OR 86 % |
|
750-1500 mm OR 600-1800 mm |


The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.


Variable magnification makes it possible to adjust the magnification flexibly within a specific range. In contrast to fixed magnification, it allows you to zoom from the lower value to the higher value. However, as the magnification increases, the field of view, i.e. the image section, becomes smaller. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 30-70x95 is a device with a variable magnification from 30x to 70x.


The field of view describes the size of the image section that can be seen through the optics. This is specified either in meters (width) at a distance of 1000 meters (m/1000m), or feet (width) at a distance of 1000 yards (ft/1000 yds), or as an angle (degrees). The higher the magnification, the smaller the field of view.
Binoculars have a large field of view, which means you can see a wide area. Spotting scopes have a higher magnification, which makes the field of view much smaller, but you can see more detail.


The weight specifies how heavy or light the device is (in grams or ounces). Do you intend to do a lot of walking? Lightweight equipment is a priority in this case.
| Exportable products | No |
|---|
