Swarovski - STS objective module

As low as R 41,000.00
Availability:
In stock
Only %1 left
SKU
STS
Get your goods upfront and pay for
them over 3 interest free instalments
of R 13,666.67. Standard shipping terms
apply.
Find out how >>

Description:

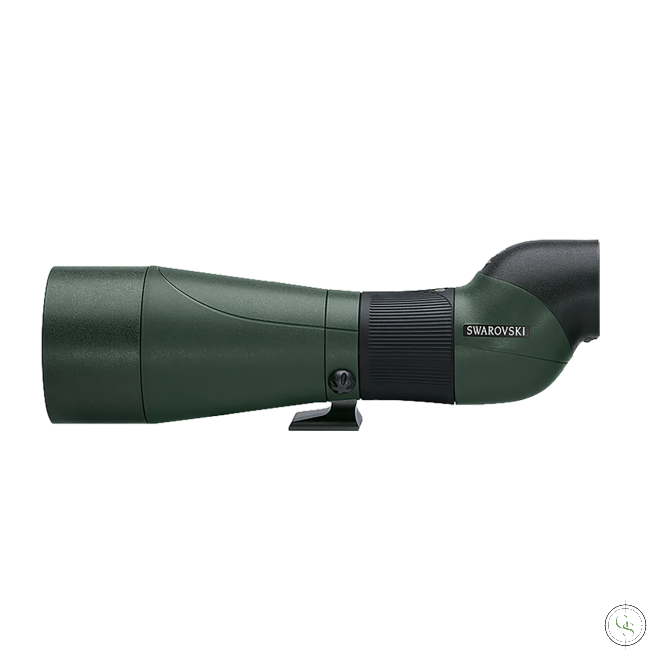

The STS 65 is a lightweight and handy spotting scope that offers high optical quality despite its compact dimensions. The straight view of the STS 80 is particularly beneficial to those who need to find moving targets quickly.

The STS 65 is a lightweight and handy spotting scope that offers high optical quality despite its compact dimensions. Perfectly suited to long days outdoors, when every ounce/gram counts, its straight view is particularly beneficial to those who need to find moving targets quickly.

OR

The straight view of the STS 80 is particularly beneficial to those who need to find moving targets quickly. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.


Technical Specifications:

Objective:

65 mm

OR

80 mm
Effective objective lens diameter

17 mm
Eye relief

3 m

OR

5 m
Shortest focusing distance

> 5 dpt
Diopter correction at ∞

25-50x

OR

20-60x
Magnification

2.6-1.3 mm

3.3-1.1 mm

OR

3.2-1.6 mm

4.0-1.3 mm
Exit pupil diameter

42-27 m/1000m

OR

36-20 m/1000m
Field of view m at 1000m / ft at 1,000yds

2.4-1.55 °

OR

2.1-1.1 °
Field of view degrees

2.4-1.55 °

OR

2.1-1.1 °
Field of view for eyeglass wearers in degrees

60-70 °

OR

40-65 °
Field of view apparent

85 %

OR

86 %
Light transmission of total product

750-1500 mm

OR

600-1800 mm
Focal length with TLS APO in mm.

M 82 x 0.75
Objective filter thread



Environment & Conditions:

-20 to +55 °C
Functional temperature
-30 to +70 °C
Storage temperature
13 ft / 4 m water depth (inert gas filling)
Submersion tightness


Digital:

M 67 x 0.75
Objective filter thread


Size & Weight:

375 mm

OR

405 mm
Length with straight view in mm.

1375 g

OR

1340 g
Weight


What to consider when choosing your spotting scope:

Objective lens diameter

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

Variable magnification

Variable magnification makes it possible to adjust the magnification flexibly within a specific range. In contrast to fixed magnification, it allows you to zoom from the lower value to the higher value. However, as the magnification increases, the field of view, i.e. the image section, becomes smaller. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 30-70x95 is a device with a variable magnification from 30x to 70x.

Field of view

The field of view describes the size of the image section that can be seen through the optics. This is specified either in meters (width) at a distance of 1000 meters (m/1000m), or feet (width) at a distance of 1000 yards (ft/1000 yds), or as an angle (degrees). The higher the magnification, the smaller the field of view.
Binoculars have a large field of view, which means you can see a wide area. Spotting scopes have a higher magnification, which makes the field of view much smaller, but you can see more detail.

Weight

The weight specifies how heavy or light the device is (in grams or ounces). Do you intend to do a lot of walking? Lightweight equipment is a priority in this case.
